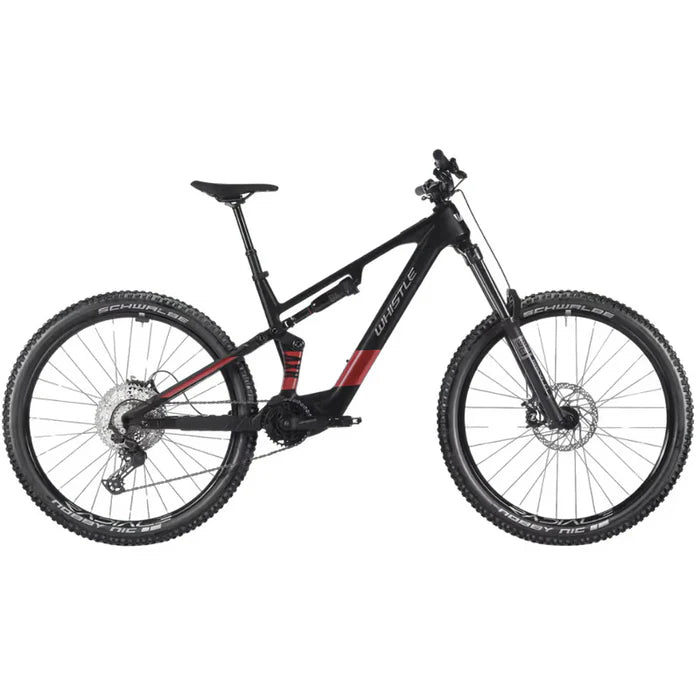

Frame: AXR CA5.6 e-MTB: Toray T700 carbon front, alu rear, 29” integrated battery frame, RockShox Psylo Silver RC 160/160 mm, DJI Avinox M1 800 Wh, Shimano XT 12-speed, Schwalbe Nobby Nic 2.6” Trail-ready.
Fork: RockShox Psylo Silver RC eMTB, Solo Air, 29", Travel 160 mm, 1.5 Tapered, 15x110 mm
Rear Shock: RockShox Deluxe, Debon Air, 230x65 - Sergio
Headset: FSA CRII Dual, 1.5”, Internal routing
Crankset: FSA CK320, 34T MegaTooth
Rear Derailleur: Shimano XT RD-M8100 SGS Shadow Plus, 12s
Shifters Levers: Shimano Deore SL-M6100 Rapidfire-Plus, 12s
Brakes: Shimano BR-MT420, Four piston, Rotor SM-RT30 203 mm / 203 mm
Cassette: Shimano CS-M6100, 12s, 10/51
Pedals: Alu MTB Full +
Front hub: Radiale J110, 15x110, International, 32h
Rear hub: Radiale J148, 12x148, International, Microspline, 32h
Rims: Radiale X30, eDesign, Asymmetric, Tubeless Ready, 622x30c
Stem: Alu, Barbore 35 mm, Extension S-M frame 35 mm L-XL 50 mm
Handlebar: Alu, 780 mm, Barbore 35 mm, Rise 15 mm
Seatpost: Dropper A1, Diameter 31.6 mm, remote
Saddle: Selle Royal Sauris
Tyres: Schwalbe Nobby Nic, Performance, Addix, 29”x2.60”
Weight: 24
Size: 40 - 44 -48
Wheel diameter [inch]: 29’’
Gear number: 12
Nominal motor power: 250 W

Battery & Charging: Avinox 800 Wh (Fixed), weight 3.74 kg

Display: Avinox DP100

ENGINE: Avinox M2S 2,6 kg

Max Power & Torque: 1300W, 150 Nm
