Features

Description

Battery
Phylion 48V, 627 Wh lithium-ion battery, positioned behind the seat tube, with Smart BMS CAN.

Display
A23 LCD CAN, Bluetooth

Motor
Ananda brushless 48V, on the rear hub



Technical Specifications

Frame: Aluminum 20" FAT, easy access, integrated support, internal cables
Fork: Zoom 458A 20” Fat, aluminum crown, 30mm stanchions, 135mm thru-axle
Headset: Integrated FSA 1”1/8
Crankset:Steel 170mm 42T, 120mm BB cartridge bearing
Rear derailleur:Shimano Tourney RD-FT35
Shifter: Shimano Tourney SL-RV400 RevoShift, 7 speed
Brakes: Hydraulic disc, 160mm rotor, with brake lever switch
Tires:Fat City 20”x4.00”
Stem:Beer BMX
Handlebar:Steel BMX, 680mm, 170mm rise
Seatpost: Aluminum with clamp, 27.2mm
Saddle:Selle Royal Wave vacuum
Pedals:Resin BMX
Fenders: Painted steel, single stay
Rack:Rear integrated into the frame, 25 kg capacity - Front aluminum on the head tube, 12 kg capacity
Lights: Front Spanninga 30 lux - Rear LED with brake light
Color:Gradient dark red
Sizes: 43 cm
Charging Time:100%: 7 hours / 80%: 5 hours and 12 minutes / 2A European plug
Description

Battery
Phylion 48V, 627 Wh lithium-ion battery, positioned behind the seat tube, with Smart BMS CAN.

Display
A23 LCD CAN, Bluetooth

Motor
Ananda brushless 48V, on the rear hub



Technical Specifications

Frame: Aluminum 20" FAT, easy access, integrated support, internal cables
Fork: Zoom 458A 20” Fat, aluminum crown, 30mm stanchions, 135mm thru-axle
Headset: Integrated FSA 1”1/8
Crankset:Steel 170mm 42T, 120mm BB cartridge bearing
Rear derailleur:Shimano Tourney RD-FT35
Shifter: Shimano Tourney SL-RV400 RevoShift, 7 speed
Brakes: Hydraulic disc, 160mm rotor, with brake lever switch
Tires:Fat City 20”x4.00”
Stem:Beer BMX
Handlebar:Steel BMX, 680mm, 170mm rise
Seatpost: Aluminum with clamp, 27.2mm
Saddle:Selle Royal Wave vacuum
Pedals:Resin BMX
Fenders: Painted steel, single stay
Rack:Rear integrated into the frame, 25 kg capacity - Front aluminum on the head tube, 12 kg capacity
Lights: Front Spanninga 30 lux - Rear LED with brake light
Color:Gradient dark red
Sizes: 43 cm
Charging Time:100%: 7 hours / 80%: 5 hours and 12 minutes / 2A European plug
ATALA by ATALA

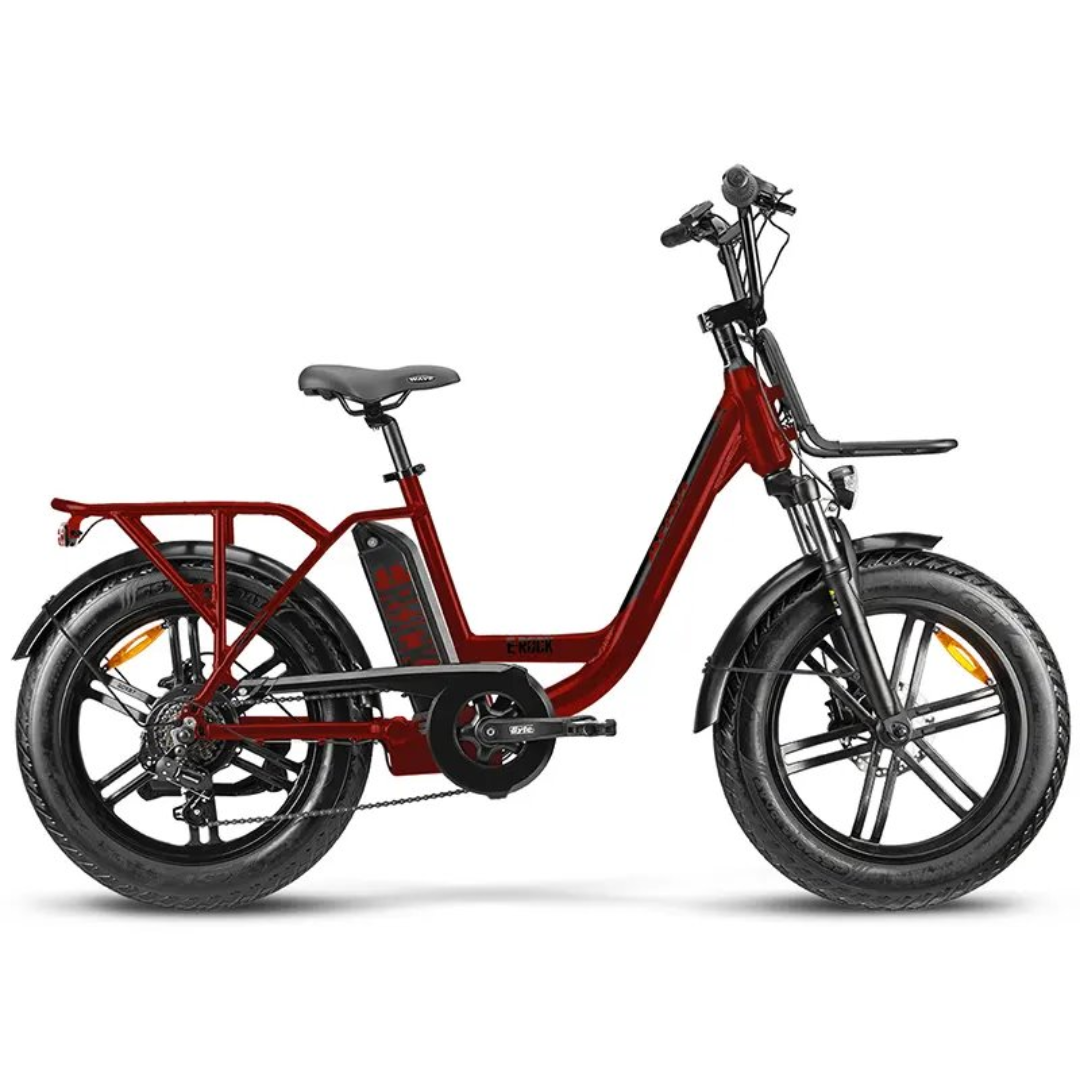

ATALA E-ROCK 627Wh

€1.499,00
€1.749,00
€1.499,00
Tax included. Shipping calculated at checkout.
