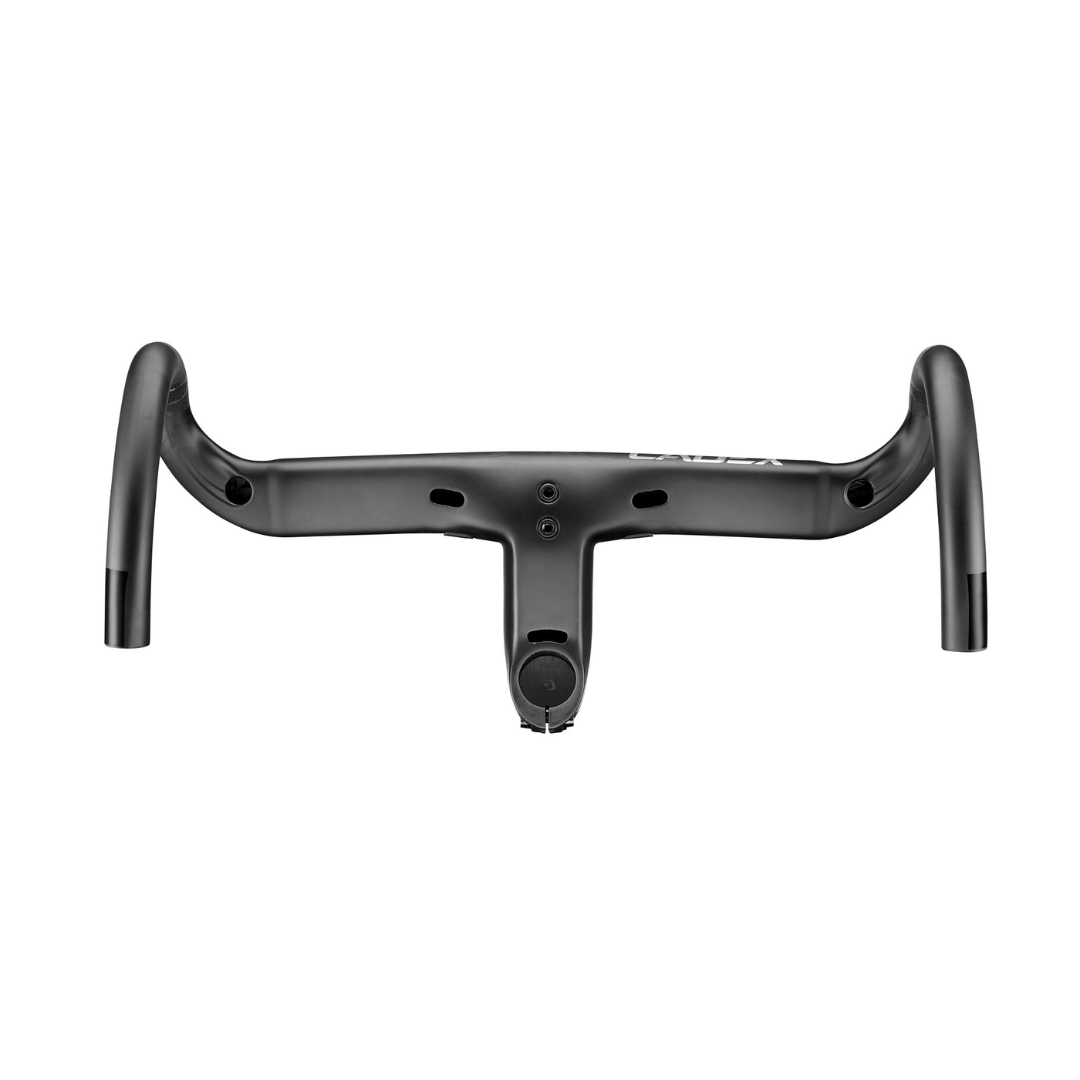

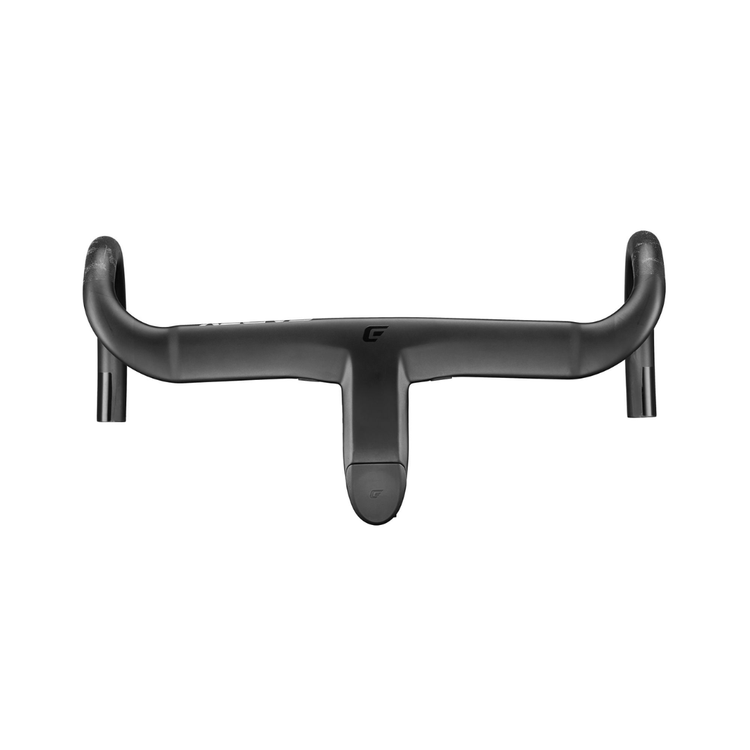

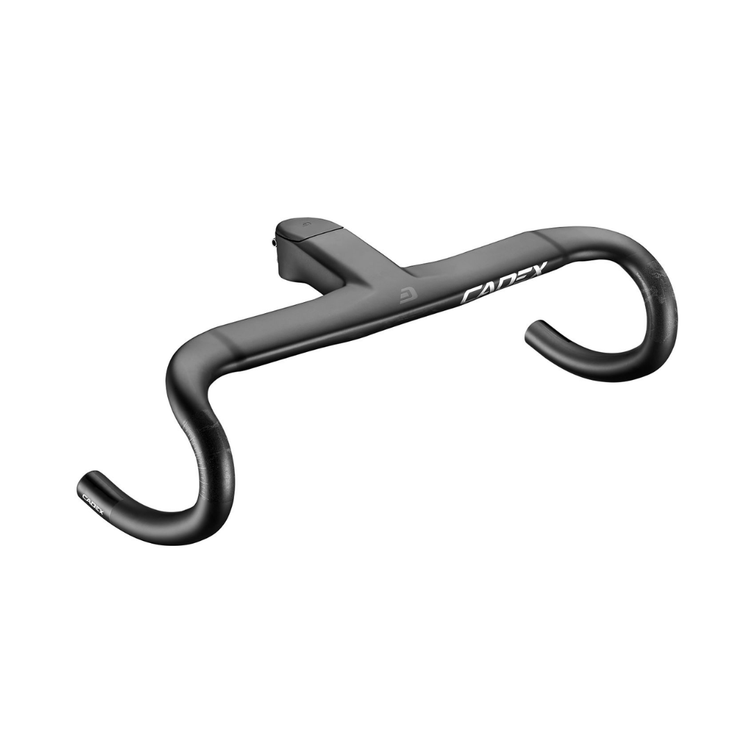

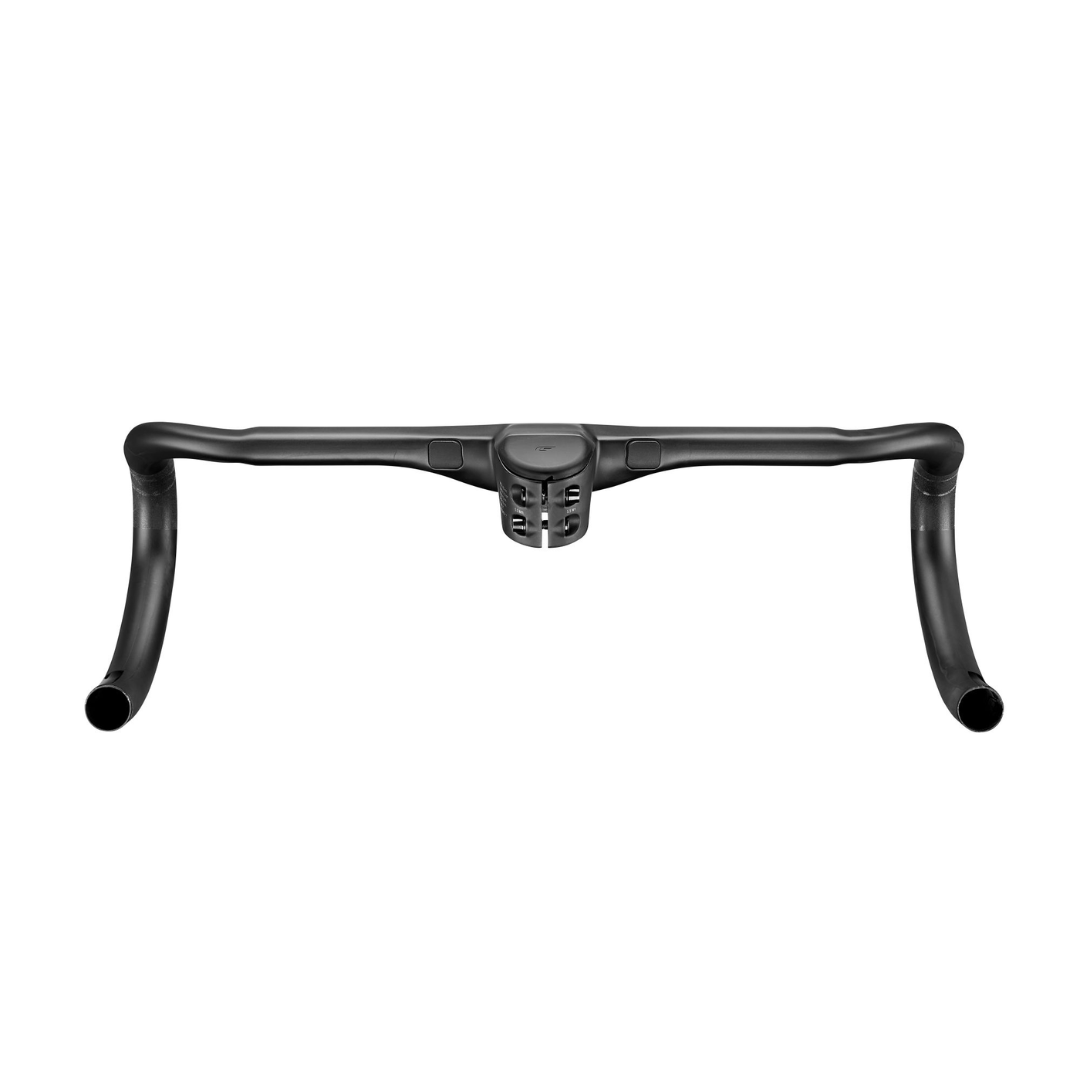

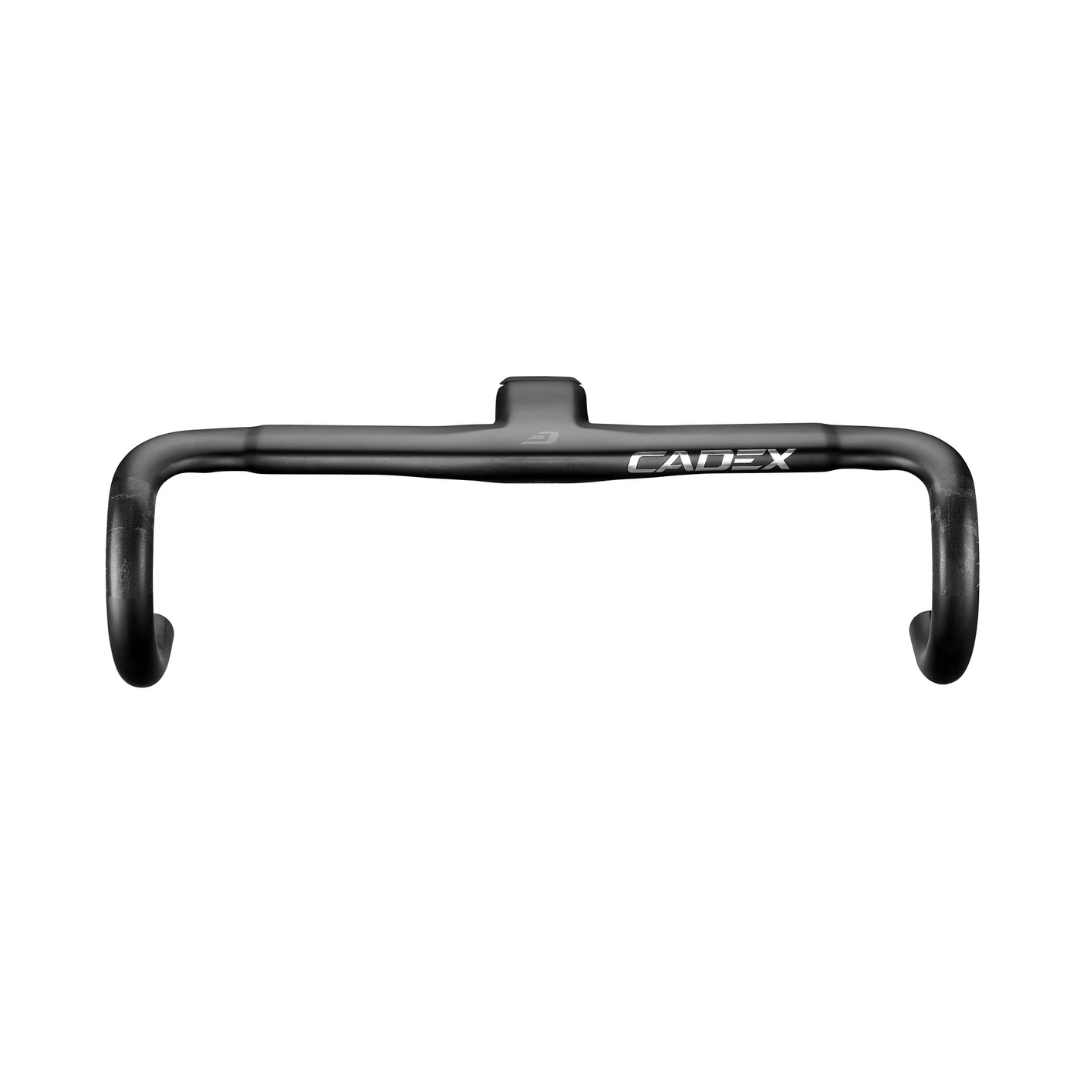

Cadex Aero Integrated Handlebar

The CADEX Aero integrated handlebar is designed for experienced, competitive riders who want to break away from the pack. The flattened tops reduce the frontal surface area for those moments when you're tucked deep and charging hard. The shallow 125mm drop and long 80mm reach reinforce the aerodynamic position and make transitions between hand positions smooth and easy.

• Integrated bar and stem construction with internal cable routing for improved aerodynamic performance.
• One-piece manufacturing using high-quality materials, such as carbon fiber, and high-precision layering methods to eliminate unnecessary weight.
• Flattened tops improve aerodynamic efficiency.
• 80mm reach and reduced width for a natural aerodynamic positioning.
• T800 and T1100 carbon fiber keeps weight low without compromising strength and stiffness.
• The shallow drop makes transitions between hoods and drops easy and fast.
• The 3-degree flare provides improved control when descending, cornering and sprinting.
• The 2-degree backsweep and slightly curved ramps offer better grip and support during long rides.
• Compatible with Shimano Di2 wireless shifting.
• Front computer mount.
• Compatible with 1-1/4", 1-1/8" steerer tubes and includes OverDrive Aero carbon spacers.
• Excellent in combination with Propel from MY23/DEFY from MY24/TCR from MY25

Specifications
Material: Carbon
Stem Angle: -10 degrees
Stem Clamp: 1-1/4” and 1-1/8” (with supplied carbon spacer)
Width (drop to drop): 360/ 380/ 400/ 420 / 440 mm
Width (hood to hood): 340/ 360/ 380/ 400 / 420 mm
Drop: 125mm
Reach: 80 mm (72 mm for 360 mm bar)
Flare: 3 degrees
Backsweep: 2 degrees
Weight: 325 g (420*100)
Included Accessories: 1 1/8 spacer, OverDrive Aero spacer, 2021-2023 TCR spacer, OverDrive Aero shim 1 1/4” to 1/8” shim, CADEX out-front computer mount
