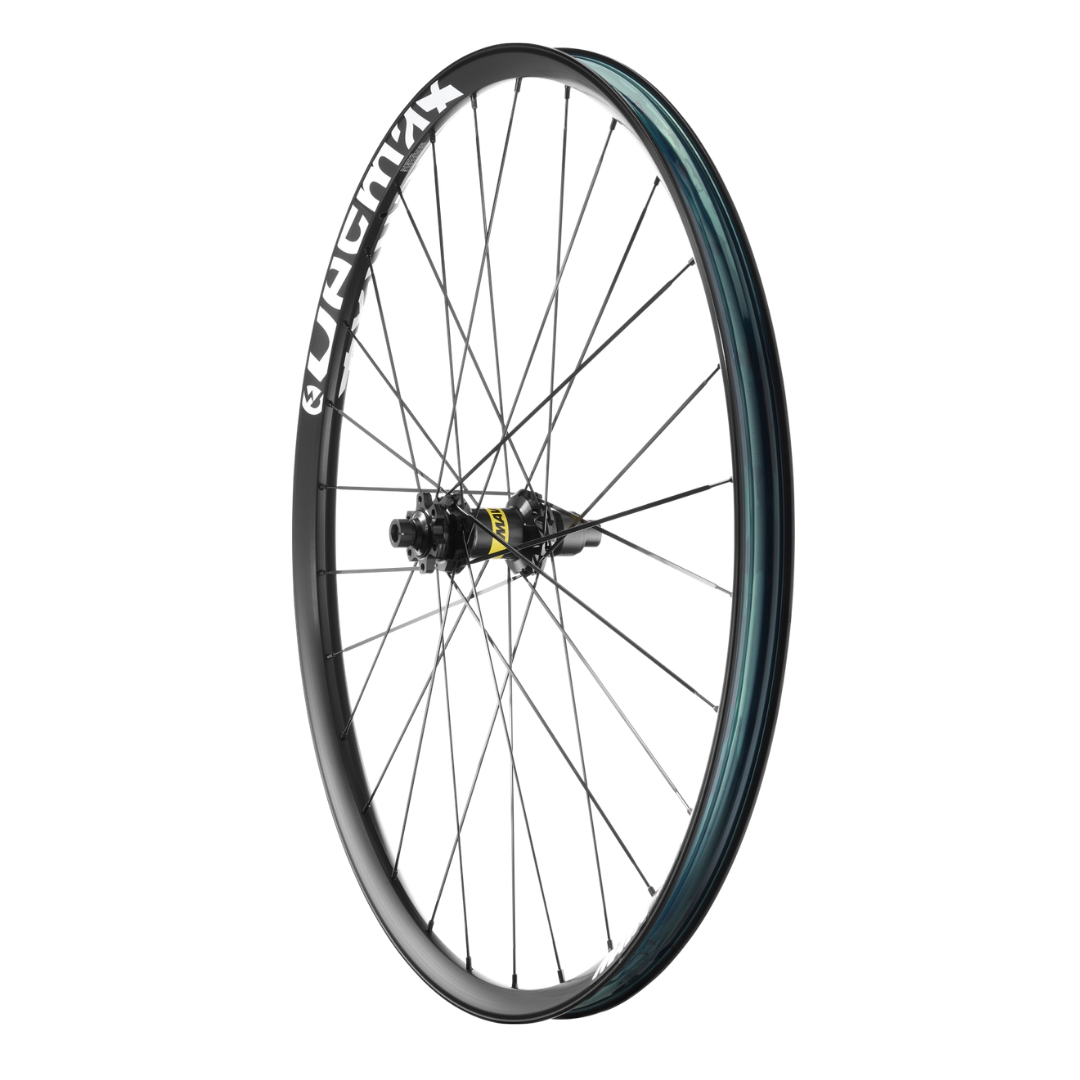

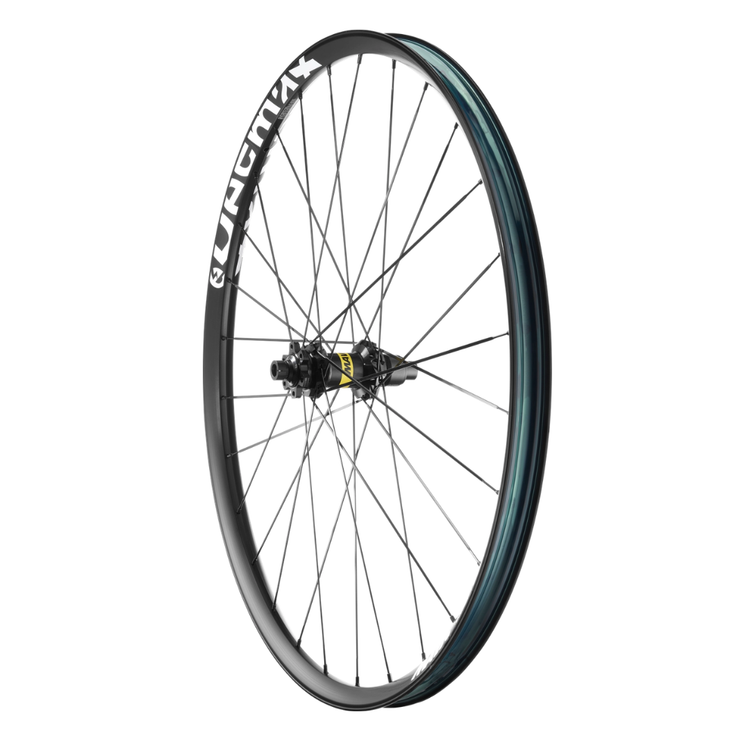

The E-Deemax name has become a reference for electric bike riders. This new E-Deemax lives up to its name, with many of the same features and technologies as the top-of-the-range model, but at a much more accessible price.

For this new version, a completely new rim profile has been designed. Thanks to a wider central channel, installing even the strongest and stiffest tires has never been so easy.
Our exclusive Pinch Flat Protection (PFP) technology offers a wider contact surface at the top of the sidewall and significantly reduces the risk of tire cuts and punctures. Thanks to PFP, the tire can withstand a 20% harder impact before being cut.
The rim is welded for increased reliability and features a 30mm internal width with Tubeless Ready compatibility, allowing for lower tire pressure for improved traction and control.

Like all our E-Deemax wheels, this new option is also validated in the laboratory and in the field for a maximum total weight of 180 kg.

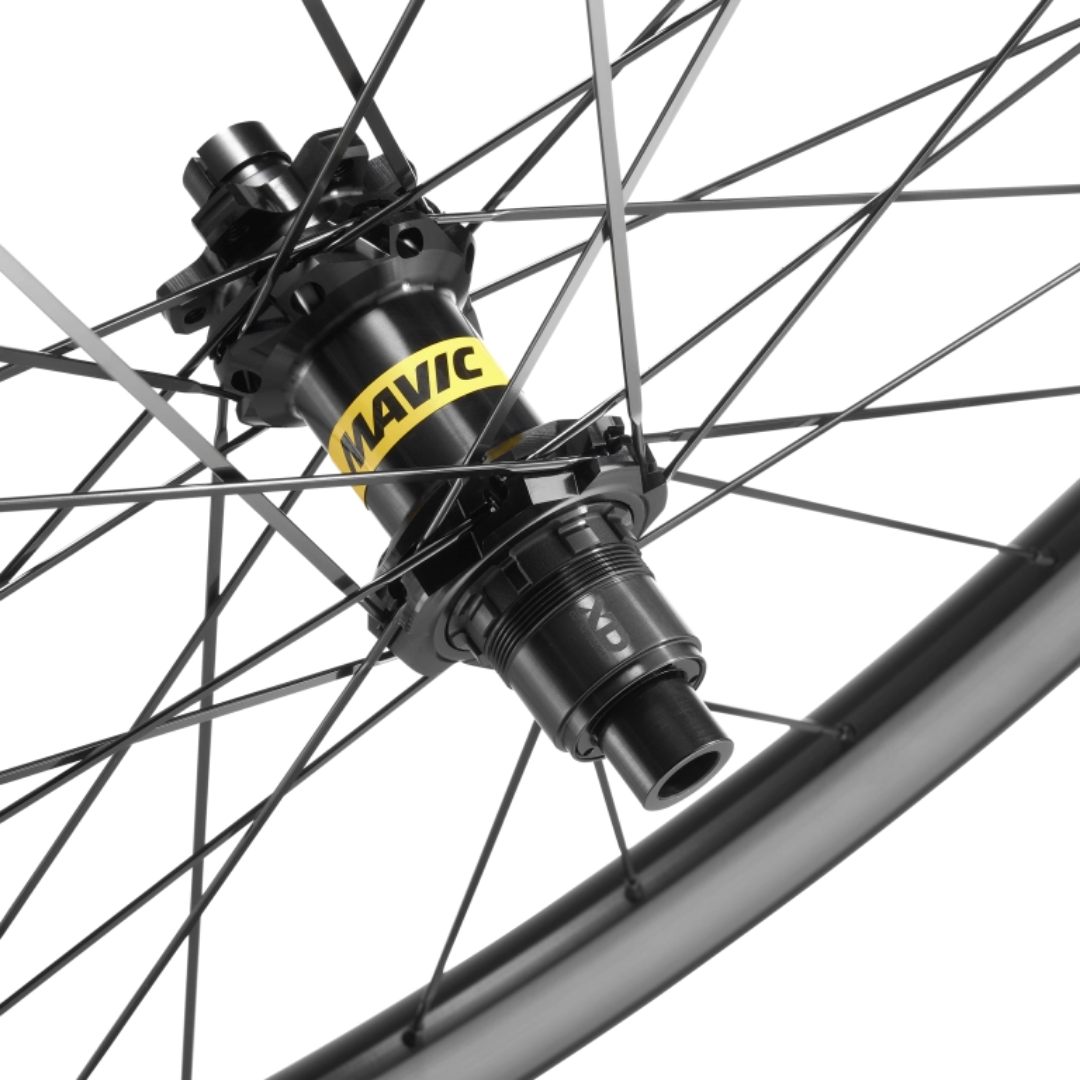

This new generation of E-Deemax is mounted on our brand new heavy-duty Infinity 28 hub. Infinity means that only one spoke length is needed for both the front and rear wheels, and for both the right and left sides, and that a spoke replacement can be done without removing the disc or cassette.
Reinforced spokes should protect against any damage, but in any case, each wheel comes with 2 spare spokes.

Our Instant Drive 360 freewheel with a double ratchet system equips the rear hub and guarantees quick engagement and high-level reliability.

The rear hub is compatible with Shimano HG9, Micro Spline, and SRAM XD driver bodies. The E-Deemax 30 is available with 6-bolt or center lock brake rotors and is compatible with a 15x110 front axle and 12x148 rear axle. The wheel comes with valves, spare spokes, and accessories.
Available in 29'' and 27.5'', in pairs or individually for Mullet builds.

Rims
Material: Maxtal
Height: 22 mm
Joint: SUP welding technology
Internal width: 30 mm
Drilling: traditional (28 holes front/rear)
Braking: disc
Profile: asymmetric
ETRTO size: 584x30TC

Spokes
Material: steel
Shape: straight, flat, anti-rotation (front and rear)
Nipples: steel, ABS, black
Lacing: 3-cross (rear)

Hubs
Body material: aluminum
Body design: INFINITY
Disc standard: 6-bolt only or Center Lock
Axle material: aluminum
Axle dimensions: front 15x110 / rear 12x148
Freewheel technology: Instant Drive 360
Freewheel: Shimano MS / Sram XD MTB
Bearing technology: QRM self-adjusting - sealed cartridge
