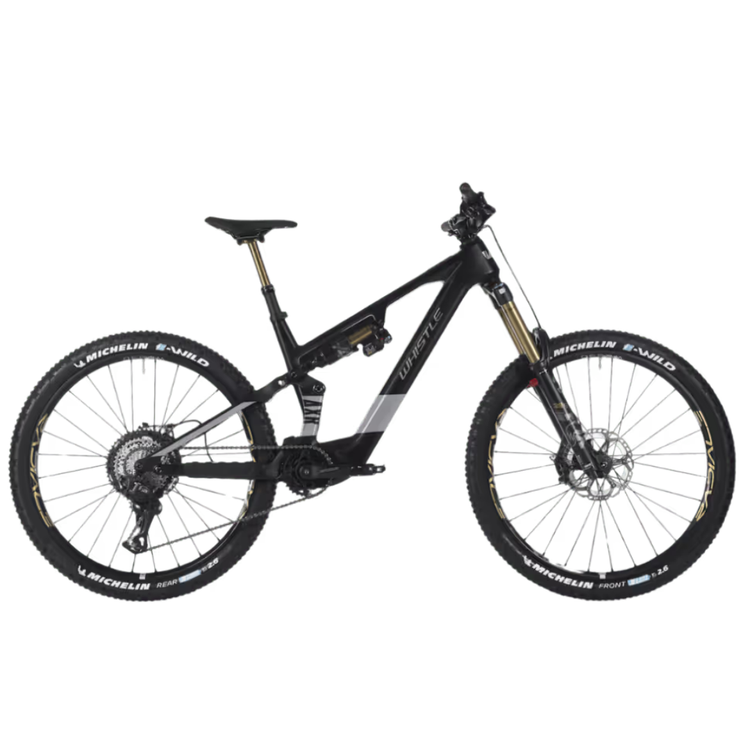

WHISTLE AXR C10.6

Winning geometry
Our geometries are designed for competition. Every angle and dimension allows for agility, speed, and steering precision.

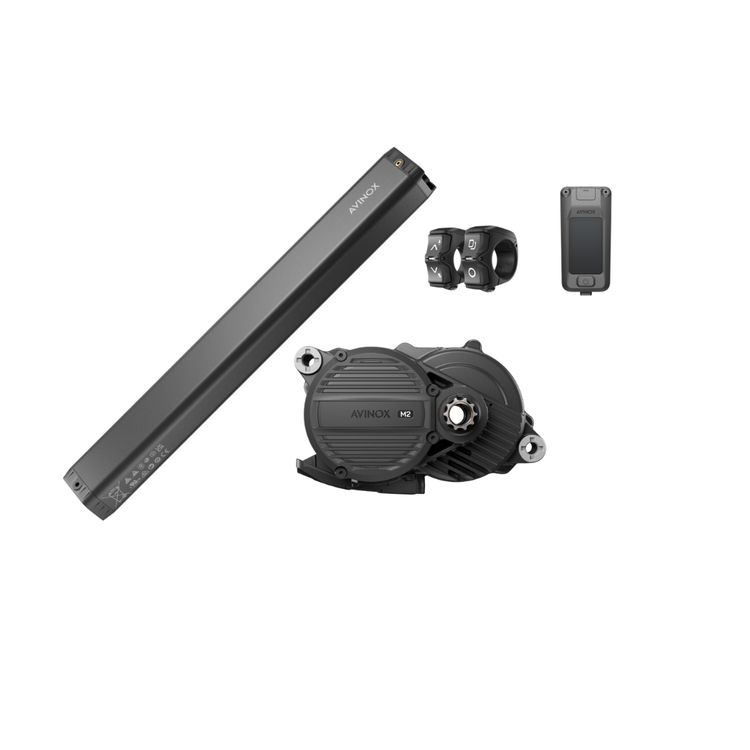

Electrical specifications

Battery: Avinox 800 Wh (Fixed), weight 3.74 kg
Display: Avinox DP100
Motor: Avinox M2S 2.6 kg

Max power and torque: 1300W, 150 Nm

Max assistance: Auto / Eco / Trail / Turbo / Boost

Max speed: 25 km/h

Mechanical specifications

Frame: Full Carbon frame Toray T700, 29”, Integrated battery, Tapered, Internal routing, Rear travel 160 mm, 12x148 mm E-Thru, UDH hanger
Fork: Fox 38 Float Factory eMTB+, Air, GRIP X, 29", Travel 170 mm, 1.5 Tapered, 15x110 mm
Shock absorber: Fox Float X2 Factory, EVOL, LSR, HSR, 2 Pos-Lever, 230x65
Headset: FSA CRII Dual, 1.5”, Internal routing
Crankset: FSA CK320, 34T MegaTooth
Rear derailleur: Shimano XT RD-M8250 SGS Di2, 12s
Shifters: Shimano XT SW-M8250 Di2, 12s
Brakes: Shimano XT BR-M8220, Four piston, Rotor CL-800 203 mm / 203 mm
Cassette: Shimano CS-M8200, 12s, 10/51
Pedals: Alu MTB Full +
Wheels: Radiale WX30, Ratchet 36T
Stem: Alu, Barbore 35 mm, Extension S-M frame 35 mm L-XL 50 mm
Handlebar: Alu, 780 mm, Barbore 35 mm, Rise 15 mm
Seatpost: Fox Transfer Factory Kashima, Diameter, 31.6 mm, remote
Saddle: Selle Royal SRX
Tires: Michelin e-Wild Front&Rear Competition Line, 29"x2.60", Tubeless ready
Weight: 22.4kg
Sizes: 40 - 44 - 48
Wheel size [inches]: 29’’
Speeds [gears]: 12
Charging Time: 2.5 hours
